6mm PGM0610P dc coreless planetary gear motor

Product Information:

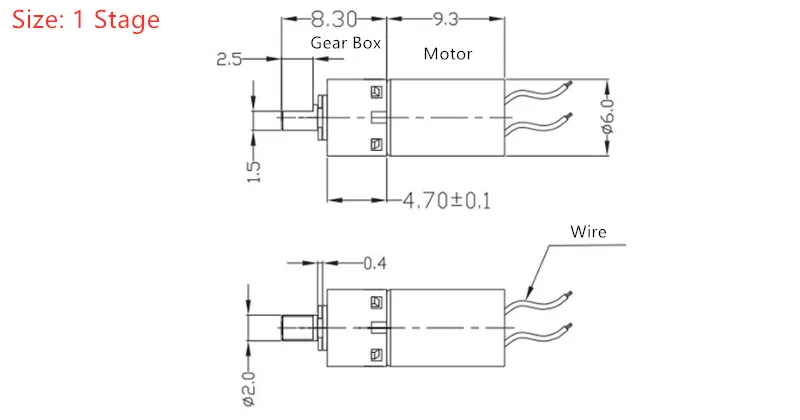

1 Stage:

Rated Voltage:3V DC

Started Voltage: ≤1 V DC

No-load Current: 60mA

Stall Current: ≤230mA

Speed: 6500±10%rpm

Use Torque: 5 g.cm

Ratio: 5.14

No Load Noise: ＜55dB

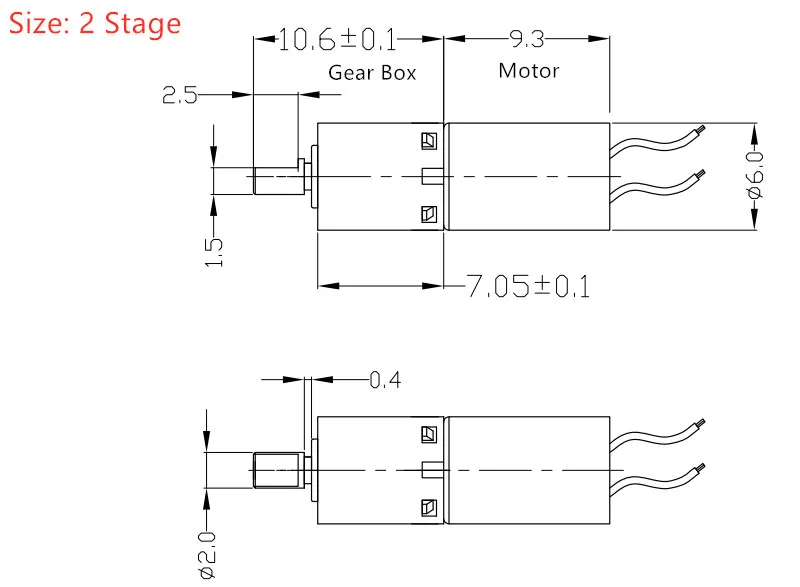

2 Stage:

Rated Voltage:3V DC

Started Voltage: ≤1 V DC

No-load Current:80mA

Stall Current: ≤230mA

Speed: 1200±10%rpm

Use Torque: 27 g.cm

Ratio: 26.45

No Load Noise: ＜55dB

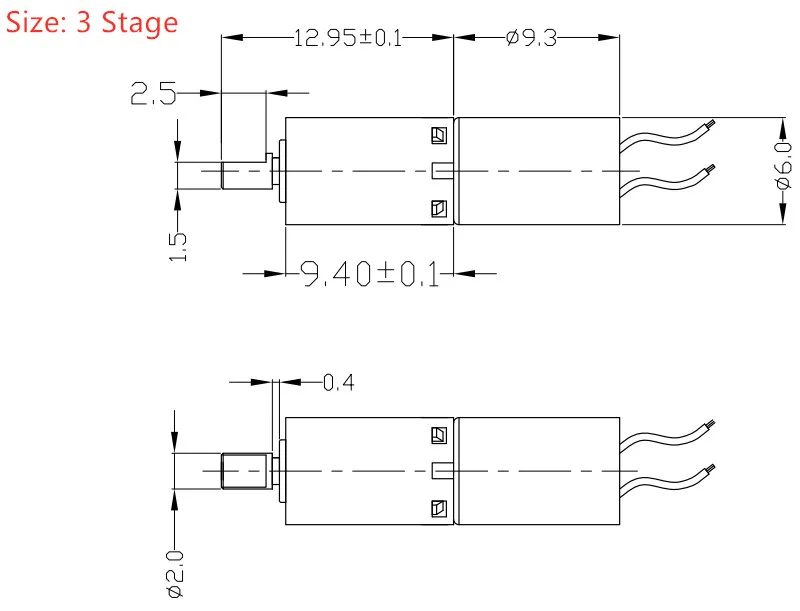

3 Stage:

Rated Voltage:3V DC

Started Voltage: ≤1 V DC

No-load Current: 80mA

Stall Current: ≤230mA

Speed: 242±10%rpm

Use Torque: 120 g.cm

Ratio: 136.02

No Load Noise: ＜55dB

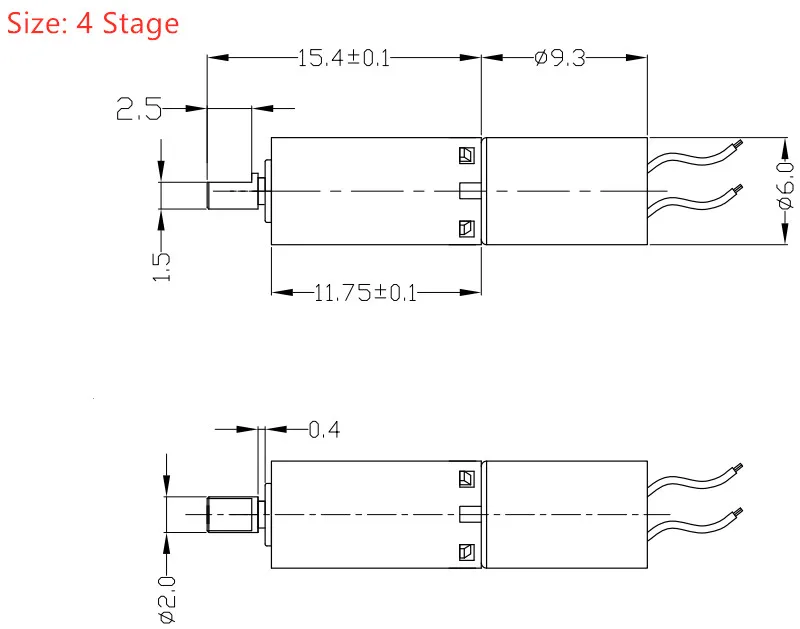

4 Stage:

Rated Voltage:3V DC

Started Voltage: ≤1 V DC

No-load Current: 60mA

Stall Current: ≤230mA

Speed: 46±10%rpm

Use Torque: 180 g.cm

Ratio: 699.55

No Load Noise: ＜55dB
